Now with expanded LSM menu, LiHV mode, and intelligent power control.

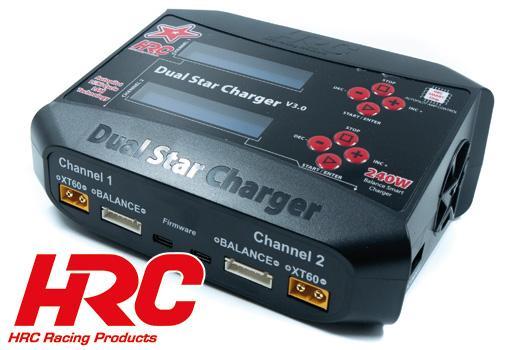

The HRC RACING Dual Star Charger V3 is the latest development in our popular Star Charger series.
With two powerful XT60 outputs, it delivers up to 150 watts per channel thanks to intelligent power distribution.
As soon as battery 1 approaches the end of charging, the excess power is automatically allocated to battery 2 – for maximum efficiency (e.g., CH1 uses 30 W, CH2 receives 120 W).
The new AUTOPILOT technology - exclusive to HRC - makes charging easier and safer than ever before. The charging current is automatically adjusted to your battery. A manual setting is also available for experienced users.
New in V3. The Lithium CYCLE function allows repeated charging and discharging, now also with lithium batteries! It is used by HRC team riders for cell equalization and maintenance of lithium batteries (LiPo LiHV LiFe LiIon) - a wellness program for your batteries, so to speak.
Maximum performance for professionals: The Dual Star Charger V3 is equipped with innovative TVC technology (Terminal Voltage Control). This allows competition pilots to precisely adjust the end-of-charge voltage manually in order to exploit the full potential of their batteries.
The integrated LSM voice menu allows you to choose between German, English, and French.
One of the most compact AC dual chargers on the market - with high-quality design and instructions in three languages.
Technical data
Input voltage DC 11V-18V / AC 110V-240V
LiHV LiPo LiFe LiIon 1-6 cells × 2 connections
NiCd NiMH 1-15 cells × 2 connections
Lead battery Pb 2-20V × 2 connections
Charging current 0.1-10A adjustable
Discharging current 0.1-2A
Discharge power 10W
Adjustable discharge function
Internal resistance measurement
Balancer current 400mA / cell
Intelligent power control
HRC RACING Smart Chip
HRC RACING AUTOPILOT function
HRC RACING LSM menu in German, English, and French
Lithium CYCLE & NiMH/CD CYCLE function
Total power AC 150W
Total power DC 240W
CH1 AC min 30W max 150W
CH2 AC min 30W max 150W
Multiple protection system
Memory slots 20
Power switch
Super quiet fan
Dimensions 145 × 105 × 64 mm
Weight 590 grams
Smart Battery 5-25V 0.1-10A
The integrated multiple protection system continuously monitors the following parameters: voltage, capacity, time, temperature, and peak current.
Scope of delivery:
2 charging cables per type (XT60 to T plug, XT60 to EC5, XT60 to XT90)
2 XH balancer adapter boards
1 DC cable with banana plugs 12V
1 AC power cable
Optional HRC Racing charging cables are available on our website.
It is important to follow the charging instructions provided by the battery manufacturer.
